RANGE 2 3D Scanner for 3D Printing, Large Objects

RANGE 2 3D Scanner for 3D Printing, Large Objects is designed for capturing large objects, machinery, furniture, components, people, and smaller objects using handheld or turntable scanning. It provides precision up to 0.1 mm, scanning speeds up to 16 fps, a maximum single capture area of 860 x 1380 mm at 1300 mm, and a working distance of 400 ~1300 mm. Full-color scanning, Wi-Fi 6 and USB connectivity, IMU stabilization, and support for multiple 3D file formats provide flexible operation for indoor and outdoor scanning workflows.

Specifications

• Model Name: Range 2

• Scanner Type: 3D

• Resolution: High Resolution

• Precision: Up to 0.1 mm

• Minimum Point Distance: 0.1 mm

• Scan Speed: Up to 16 fps

• Working Distance: 400 ~1300 mm

• Maximum Capture Area: 860 x 1380 mm at 1300 mm

• Minimum Capture Area: 220 x 425 mm at 400 mm

• Maximum Media Size: 860 x 1380 mm

• Minimum Scan Volume: 50×50×50 mm

• Light Source: Class 1 Infrared Light

• CPU: 2 core, 1.8 GHz

• Full Color Scanning: YES

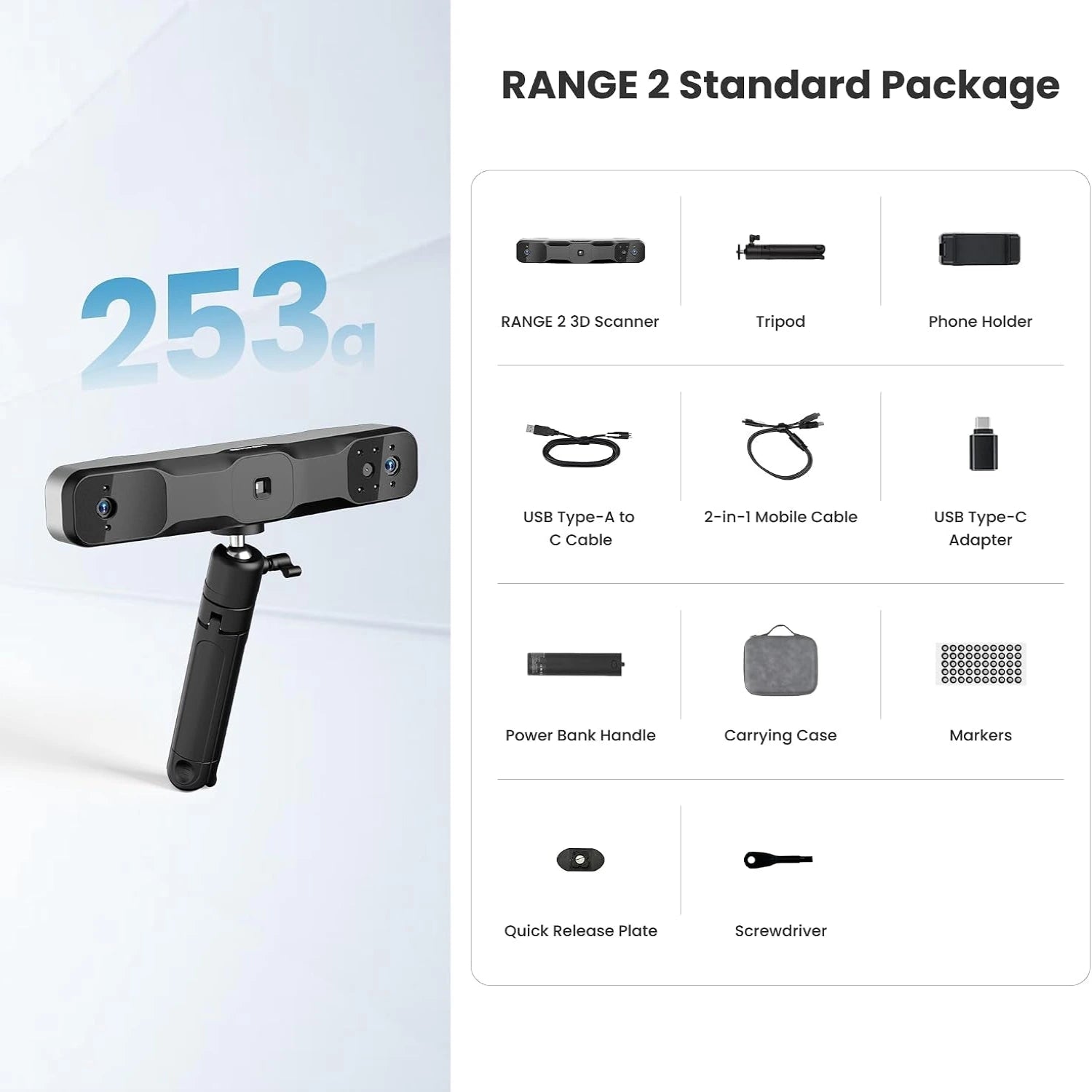

• Scanner Weight: 253 g

• Dimensions: 240 x 43 x 46 mm

• Connection Type: USB, Wi-Fi

• Connectivity Technology: USB, Wi-Fi

• Scanning Environment: Indoor and Outdoor

• Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

• Alignment: Feature, Marker, Global Marker

• Compatible Operating Systems: Windows 10\11 (64-bit), Android, iOS, macOS

• Minimum System Requirements: Windows, macOS

• Unit Count: 1 Count

• Number of Items: 1

Features

• High Precision Scanning: Provides single-frame precision up to 0.1 mm for creating detailed 3D models.

• Large-Object Scanning: Supports handheld scanning of automobiles, large machinery, components, furniture, statues, and people.

• Expanded Capture Area: Offers a maximum single capture area of 860 x 1380 mm at 1300 mm for scanning larger subjects.

• High-Speed Scanning: Scans at speeds up to 16 fps for faster capture of large objects.

• Full-Color Capture: An upgraded RGB camera and Flash LED lighting system support evenly illuminated full-color 3D scanning.

• IMU Stabilization: IMU stabilization and scanning algorithms help reduce faulty frames caused by unsteady handheld movement and support smoother frame stitching.

• Wi-Fi 6 Scanning: Connects wirelessly to a compatible smartphone for increased mobility while scanning large objects.

• USB Type-C Connection: Supports connection to a compatible laptop for scanning on a larger display.

• Dual LED Indicators: Displays scanner working status during operation.

• Tactile Controls: Physical buttons provide control of scanner functions and depth-camera exposure.

• Multiple Alignment Modes: Supports Feature, Marker, and Global Marker alignment.

• Broad File Compatibility: Outputs PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX files for use with compatible 3D modeling software and 3D printers.

Scanning Guidelines

• Large Objects: Use handheld scanning to capture stationary objects such as cars or large statues.

• Smaller Objects: A turntable can be used when scanning smaller objects such as car parts or historical artifacts.

• Full Body Scanning: Use High Speed (16fps) mode and remove reflective items such as rings and watches before scanning.

• Mobile Scanning: Using a compatible phone provides greater mobility compared with scanning from a laptop.

• Hard-to-Scan Surfaces: Use scanning spray on dark, shiny, or transparent surfaces, applying it evenly and lightly in an outdoor or ventilated environment.

• Marker Placement: When using scanning spray, spray the surface first and then place marker dots.

• Color Scan Lighting: Ensure the object is evenly illuminated with soft white light.

• RGB Camera Adjustment: Adjust the RGB camera exposure and white balance when capturing color scans.
